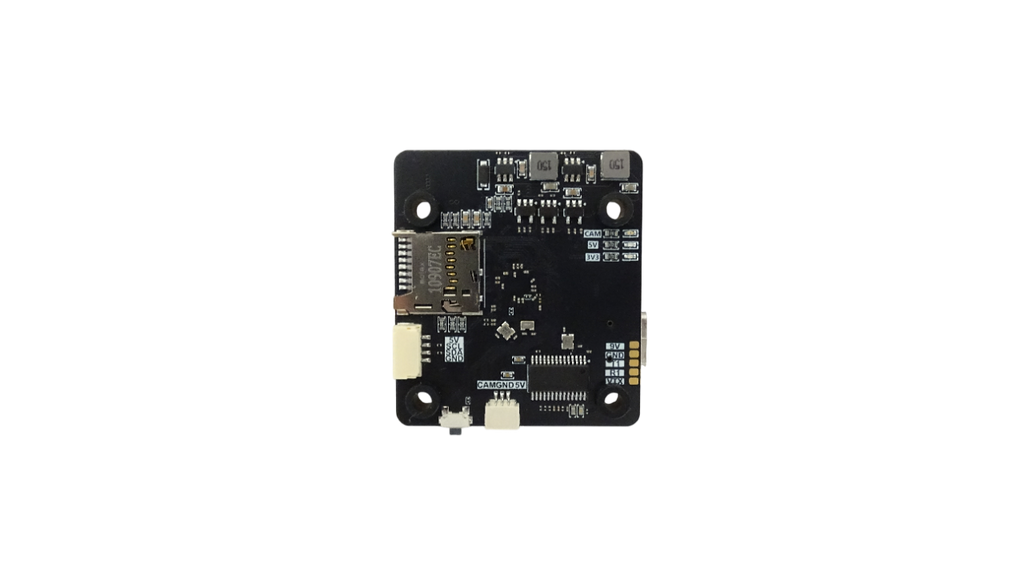

SkyRukh Surge H7 Flight Controller

Onboard Sensors & Components

• MCU: STM32H743, 2 MB Flash, 16 MHz crystal oscillator

• IMU: 2× (Bosch BMI088; InvenSense ICM20602)

• Barometer: Infineon DPS310

• OSD: MAX7456 (Analog FPV)

• Storage: 1× microSD (SDMMC), 32 KB FRAM

• Status Indicator: RGB status LED

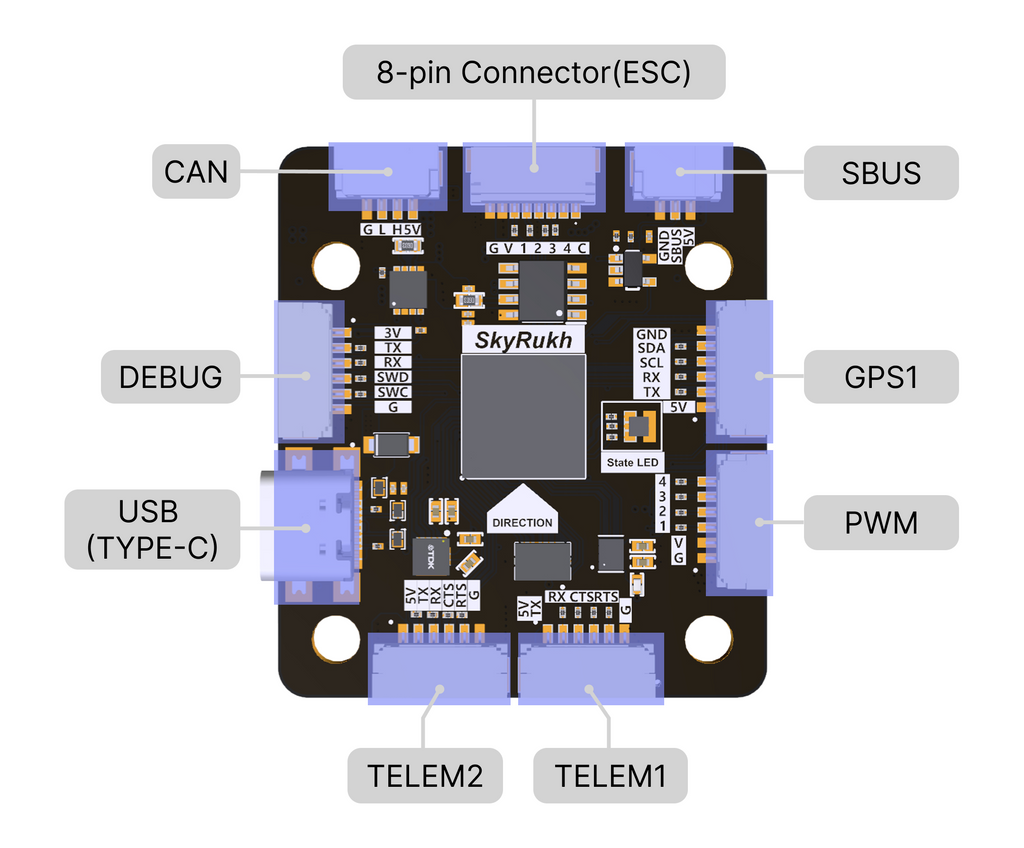

External Sensors & Interfaces

• UART: 3×

• GPS Port: 1× (pinout: VCC, GND, TX, RX, SCL, SDA)

• I²C: 2×

• CAN: 1×

• RC Inputs: SBUS, PPM / RCIN

• PWM / ESC Outputs: 8×

• Analog Input: 1× RSSI

• USB: 1× USB 2.0 OTG FS

• Debug Interface: SWD (SWDIO, SWCLK)

• microSD Slot: 1×

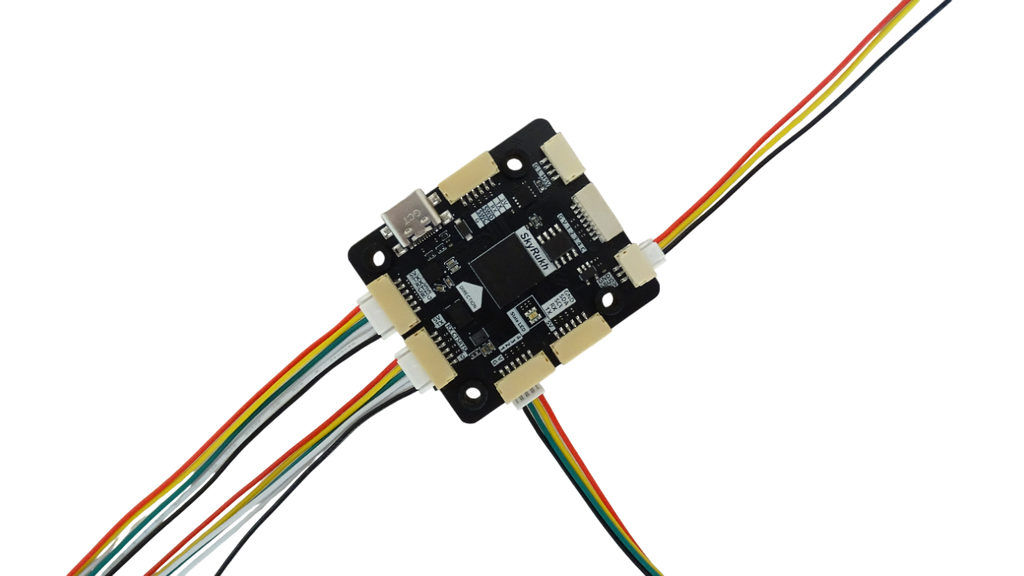

Package Contents

• 1× Skyrukh Surge H7 Flight Controller

• 2× 6-pin UART cables

• 1× I²C cable

• 1× SBUS cable
